SH CineLR 7 O4 6S HD

iFlight's new generation FPV drone. the 7-inch long-range CineLR 7. combines sleek design. easy maintenance. and a high-performance electronics system. Designed for immersive FPV experiences and professional video recording. CineLR 7 delivers exceptional flight performance and cinematic-quality footage. Whether you're tackling freestyle tricks. high-speed pursuits. or long-range filming. CineLR 7 is engineered to meet diverse flying needs with precision and reliability.

January 18. 2025 : The propellers were changed from HQProp 7.5*3.7*3 to HQProp 7.5*3*3.

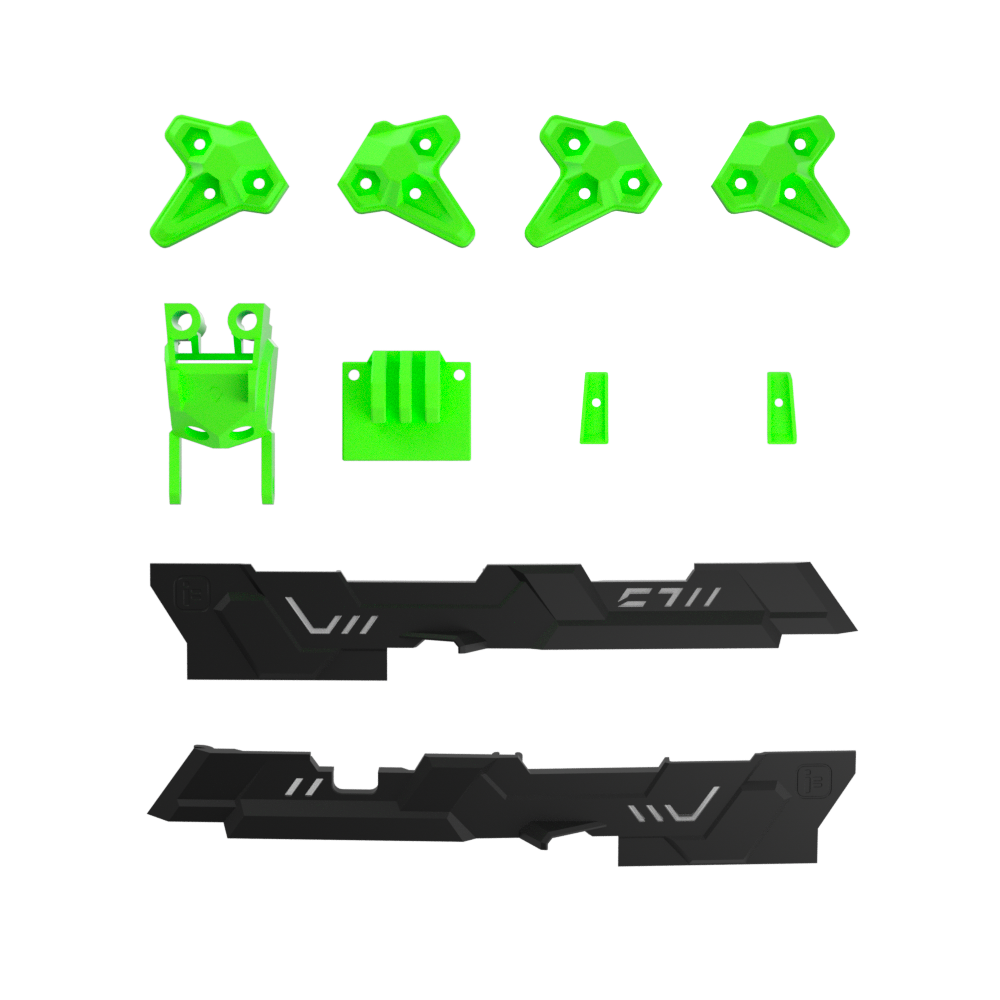

Mar.11. 2025 : The material of some TPU Parts in BNF is changed to injection molded parts.

Innovative Frame Design. No Props in View

SH Series adopted an innovative frame design with no props in view while allowing flexibility for freestyle tricks. With balanced motor output. provides enhanced overall flight performance.

Quick-release Side Panels

Quick-release side panels provide protection against debris and allow for easy maintenance while ensuring a cleaner setup with no cable entanglement.

4K Stabilized Video

SH Series is equipped with the latest DJI O4 Air Unit Pro. upgraded with 1.1/1.3-inch image sensor. it captures delicate details in low-light environments. With a 155° ultra-wide angle. capturing breathtaking visuals. Enjoy real-time video transmission with up to 1080p/100fps for an immersive flying experience. (Source DJI)

Up to 25mins Long-range Flight Time

Capable of carrying an efficient high capacity battery. explore the skies like never before with extended flight time. Recommended 6S 4000mAh Li-Ion above (slow cruising) or 6S 3300mAh lipo battery.

High-performance Core Electronics System

Equipped with racing-grade BLITZ F7 FC and BLITZ E55 4-IN-1 ESC for high-intensity flight maneuvers. It features a larger MOS and offers a 65A max burst current. which enhances stability and improves heat dissipation.

Built-in high-precision GPS Module

The integrated high-precision GPS module with tpu cover prevents signal loss from external damage. reducing flyaway risks and enhancing device safety.

Product Name: SH CineLR 7 6S O4 HD

Geometry: H-shaped

FC: BLITZ F7 Flight Controller

ESC: BLITZ E55 4-IN-1 2-6S 55A ESC

Video Transmission: DJI O4 Air Unit Pro

Frame: 334mm wheelbase

Motor: XING2 2809 1250KV motors

Prop: HQ 7.5X3X3 propellers

Weight: 770±5g(Without Battery)

Takeoff Weight: Approx. 1628±5g (incl. 21700 6S 8000mAH)

Dimensions (L×W×H): 285*196*45mm

Max Speed: 140km/h

Maximum Takeoff Altitude: 7000 m

Max Hover Time: Approx. 18mins with 6S 3300mAh battery

Approx. 25mins with 6S 8000mAh battery

Recommended load: 800g

Max Wind Speed Resistance: Level 7

Operating Temperature Range: -20° to 40° C

Antennas: Dual Antennas

GNSS: GPS+SBAS+Galileo+QZSS+Glonass

Product Name: DJI O4 Air Unit Pro

Image Sensor: 1/1.3-inch

Lens: FOV: 155°

ISO: 100-25600

Video Resolution: 1080p/100fps H.265

Video Format: MP4. Max Video Bitrate: 130Mbps

Color Mode: Normal Mode/D-Log M

Stabilization: RockSteady 3.0+ ; Stabilization function off (When RockSteady is enabled. the shooting angle only supports standard.)

Live View Quality: 1080P@100fps

Operating Frequency: 5.170-5.250 GHz & 5.725-5.850 GHz

Transmitter Power (EIRP): 5.1GHz＜23dBm(CE)/5.8GHz＜33dBm(FCC)/＜14dBm(CE)/＜30dBm(SRRC))

Max Video Transmission Range: With DJI Goggles 3/DJI Goggles N3: 15 km (FCC). 8 km (CE). 8 km (SRRC)

Communication Bandwidth: Max 60 MHz

Antenna: Dual antennas

Built-in Storage: 4GB

Supported SD cards: microSD (up to 512GB)

Operating Temperature: -10° to 40° C

Weight: Air Unit (camera module included): Approx. 32 g

Dimensions: Transmission Module: 33.5×33.5×13 mm (L×W×H)

1 x SH CineLR 7 6S O4 HD

1 x Battery pad

2 x 7.5 inch Prop(Pairs)

2 x Battery strap

1 x Screw bag

All iFlight BNFs are tested before shipment to guarantee the highest quality.

If you still encounter a problem after receiving your shipment. please immediately contact our iFlight customer support at www.iflightrc.freshdesk.com.

1. iFlight products may be used for civilian purposes only and any direct or indirect use of iFlight products for or in connection with the following is prohibited:

(1) Any military combat purpose or military combat related use;

(2) Terrorist activities: The purchaser also shall require its customers or end users to comply with the foregoing requirements.

2. iFlight Partners must strictly adhere to applicable export control and sanction laws as well as any written compliance requirements regarding these controls issued by iFlight from time to time.

If Party A has violated applicable export control or economic sanctions laws and regulations. Party B has the right to immediately suspend delivery of products to Party A or terminate relevant cooperation without any liability.

For more specific content. please check: https://shop.iflight.com/Export-Policy-info

DJI Goggles 3 / DJI Goggles N3+ DJI FPV Remote Controller 3

DJI Goggles 2 / DJI Goggles Integra+ DJI FPV remote control 2

(Or another Radio to match the RX in the Drone)

The flight control firmware needs to be configured to support the SBUS protocol so that the DJI FPV remote controller can be used.
