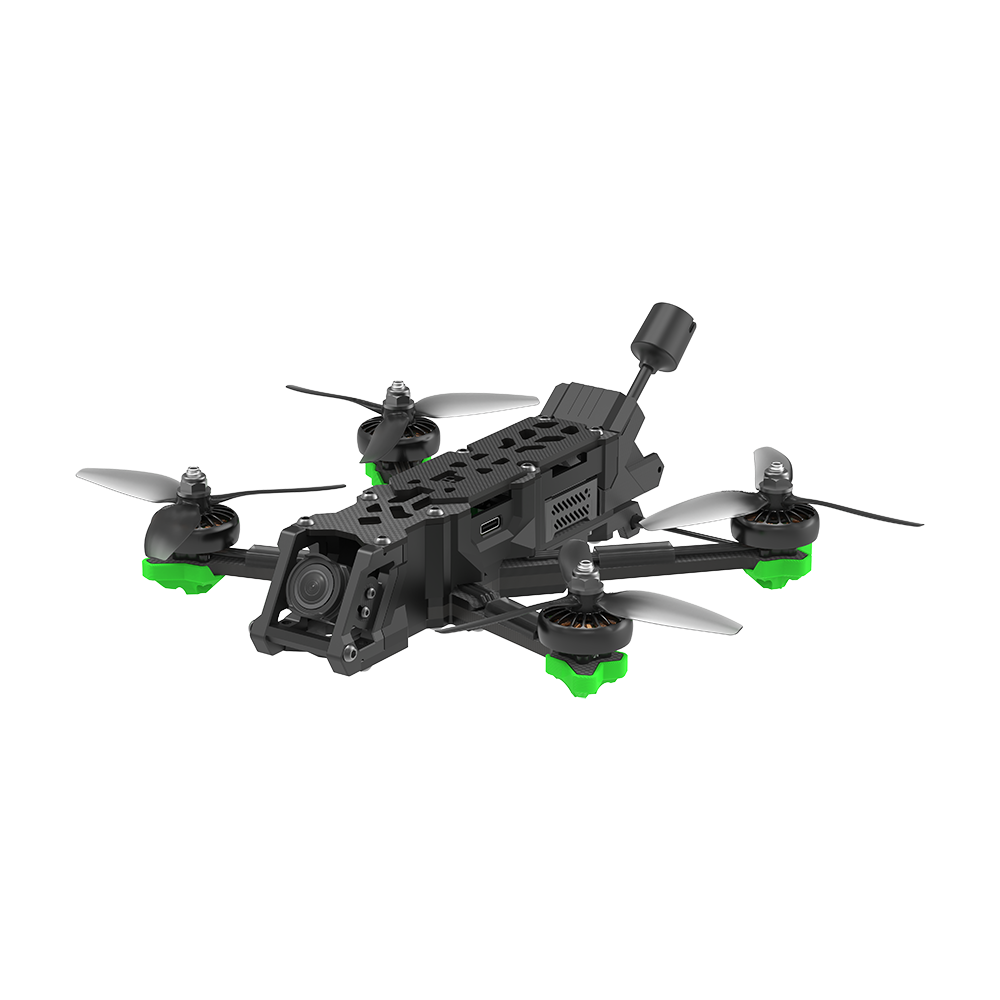

Nazgul Evoque F4 6S HD

Our best pre-built drone just got better! Another breakthrough in FPV visuals from DJI with our upgraded frame and electronics. A new standard of Bind-And-Fly drones that are simple to get started with but the durability and performance for enthusiasts.Welcome to the iFlight experience!

Introducing the latest iteration of the Nazgul evoque F4. featuring enhanced performance and a lighter. more compact design.

Latest Nazgul Frame for Maximum Protection

The old days are over. getting your electronics full of dirt and wet grass every time you crash. Our latest frame reduces contamination that could build up on your flight controller or ESCs. preventing failure or short circuits. Strategic airflow to keep your components cool and clean without taking any shortcuts in weight or performance. Illuminated side panels and 360-degree TPU protective parts.

DJI O3 HD Air Unit Low-Latency digital transmission

Up to 10 km video transmission range. enjoy a crisp and smooth real-time view in your goggles. even in environments with interference. (Source DJI)

4K Stabilized Video with 155° Ultra-Wide Angle

Together with high-grade imaging performance. it delivers exceptional visuals that will keep your audience on the edge of their seats. (Source DJI)

Secured Battery Plug with Anti-Spark Filter

Plugging in a battery can create a loud spark at the connector which is caused by the high battery current rushing into the low ESR capacitor first as well as filling up ESC capacitance. We've added a protective circuit to extend the lifespan of XT60 connectors and prevent rapid voltage or current spikes which can protect your electronics from damage.

Nov. 14. 2023 : TPU Arm Guards' color changed from black to green.

Product Name: Evoque F4

FC: BLITZ Mini F7 Flight Controller

ESC: BLITZ Mini E55S 4-IN-1 2-6S 55A ESC

Video Transmission: DJI O3 Air Unit

Frame wheelbase: 185mm

Motor: XING 2205 2450KV motors

Prop: HQ 4*3*3 propellers

Takeoff Weight: Approx. 330 g (Without battery)

Dimensions (L×W×H): 148.5×110×36 mm(Squashed X) / 149*110*36mm (DeadCat)

Diagonal Distance: 185 mm

Max Speed: 170 km/h (Manual Mode)

Maximum Takeoff Altitude: 7000 m

Max Hover Time: Approx. 8 mins

Max Flight Distance: 5 km

Max Wind Speed Resistance: Level 5

Operating Temperature Range: -10° to 40° C (14° to 104° F)

Antennas: DJI O3 Air Unit Dual-Band Antenna

GNSS: GPS+SBAS+Galileo+QZSS+Glonass(Optional)

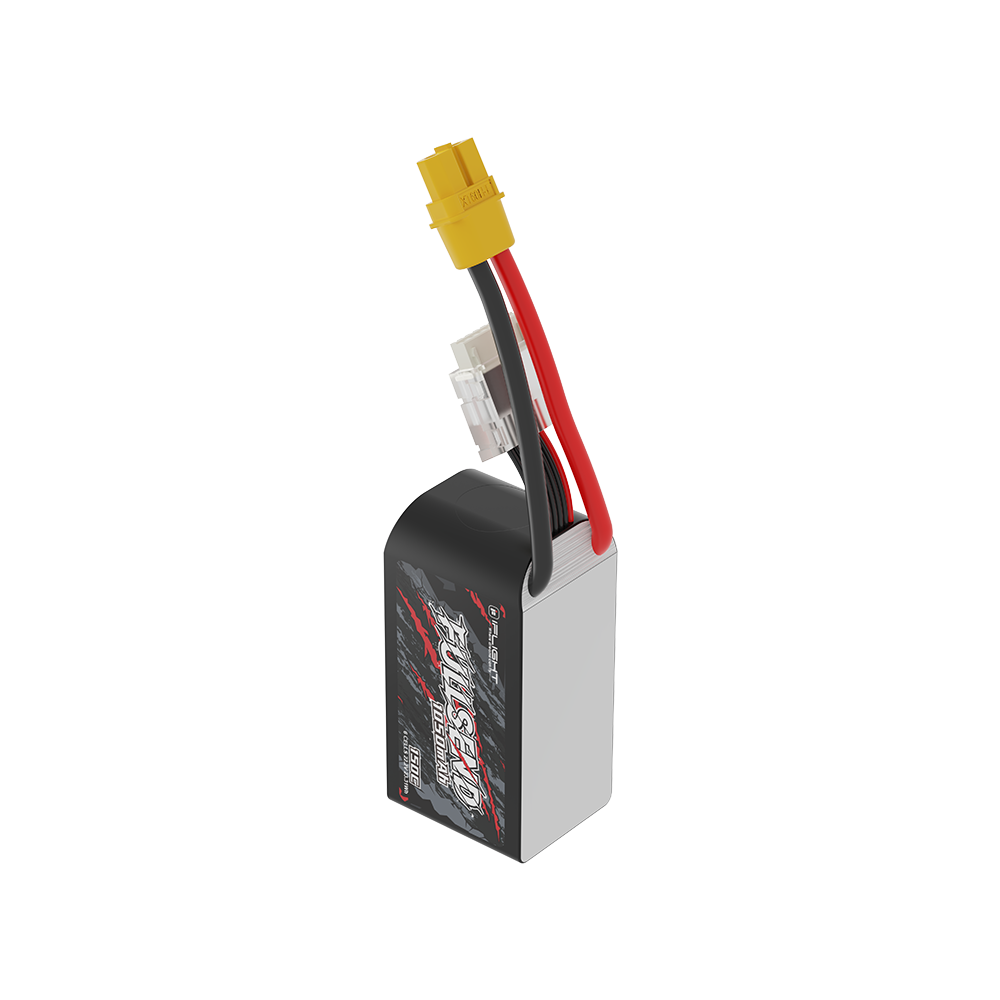

Recommended batteries:

6S 1050mAh Battery

6S 1400mAh Battery

Product Name: DJI O3 Air Unit

Communication Bandwidth: Max 40 MHz

FOV (single screen): 155°

Communication Frequency: 2.400-2.4835 GHz (RX only) / 5.725-5.850 GHz (RX and TX)

End-to-End Latency

With DJI FPV Goggles V2:

810p/120fps Video Transmission Quality: The latency is lower than 28 ms.

810p/60fps Video Transmission Quality: The latency is lower than 40 ms.

With DJI Goggles 2:

1080p/100fps Video Transmission Quality: The latency is as low as 30 ms.

1080p/60fps Video Transmission Quality: The latency is as low as 40 ms.

Max Video Transmission Bitrate: 50 Mbps

Max Video Transmission Range：10 km (FCC). 2 km (CE). 6 km (SRRC)

Operating Temperature Range: -10º to 40º C (14° to 104° F)

Power Input: 7.4-26.4 V

Audio Transmission: N/A

1 x Evoque F4 6S HD BNF

1 x DJI O3 air unit Antenna

1 x Battery pad

4 x HQ 4x3x3 propeller(Pairs)

2 x Battery strap

All iFlight BNFs are tested before shipment to guarantee the highest quality.
