iH3 O3 4S HD

Let's meet the iH3 - a new high-quality cruise drone that offers an exceptional flying experience at an affordable price.

Equipped with DJI O3 digital system. the iH3 is a 3.5-inch drone that boasts stable flight. easy operation. and superior quality. Its H-shaped frame structure and Anti-Spark Filter ensure balance and stability even during intense operations. Moreover. it can carry a naked GoPro for more exciting flight footage.

Recommended batteries:

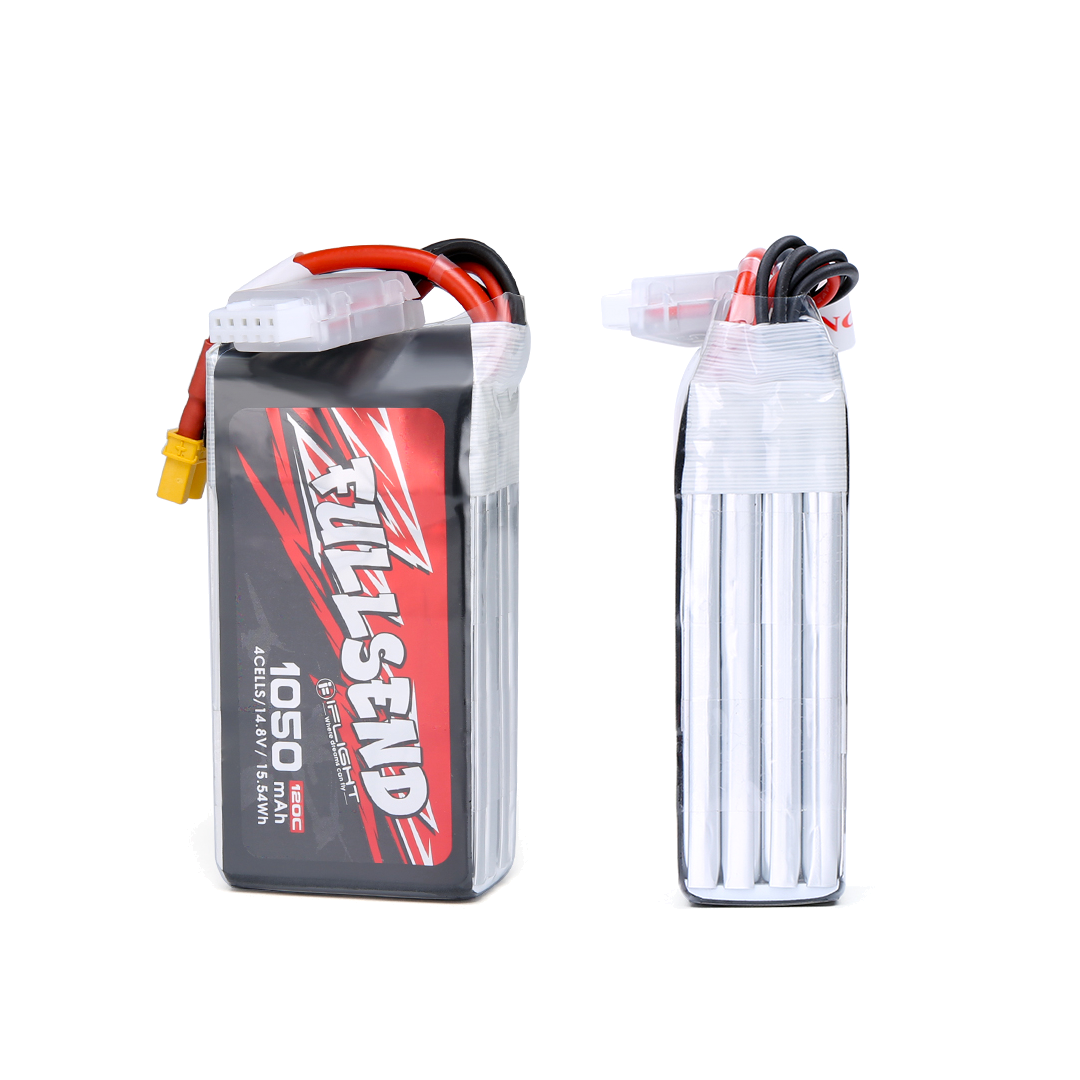

1050mAh 4S // Maximum power. ready for freestyle with stick feel of a 5inch and great range for Mid-LongRange cruising.

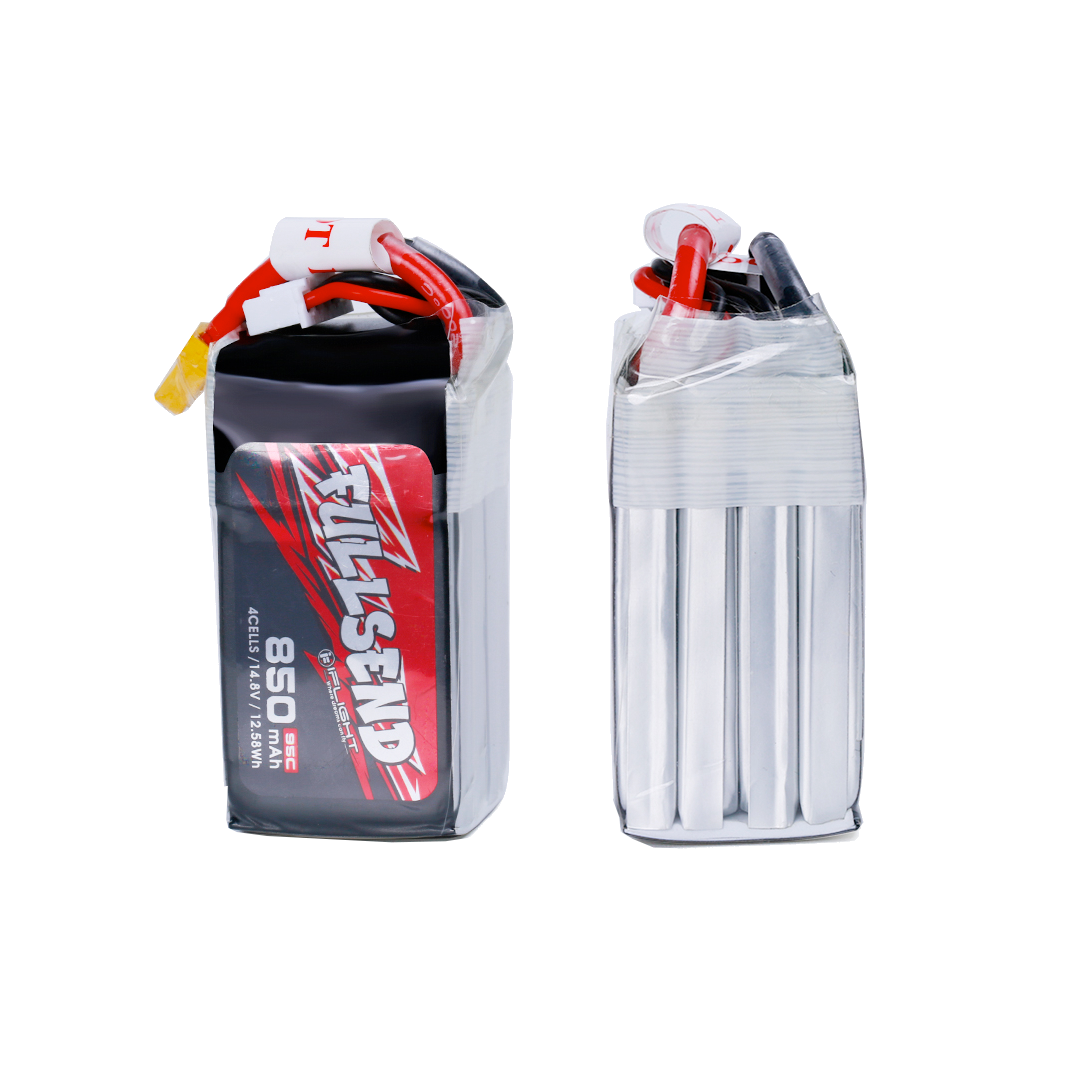

850mAh 4S // Great weight to power ratio for your daily adventure.

DJI O3 HD Air Unit Low-Latency digital transmission

4K Stabilized Video with 155° Ultra-Wide Angle

Secured Battery Plug with Anti-Spark Filter

GPS Pre-Installed for More Safety at A Distance

Special canopy to carry naked GoPro or Gopro Bones.

The H-shaped frame structure for balance. no props in view.

Product Name: iH3 O3 4S HD BNF

FC: BLITZ Mini F7 FC

ESC: BLITZ Mini E55 4-IN-1 ESC

Video Transmission: DJI O3 Air Unit

Geometry: H-shaped

Frame: 168 mm (wheelbase)

Motor: XING 1504 3100KV motors

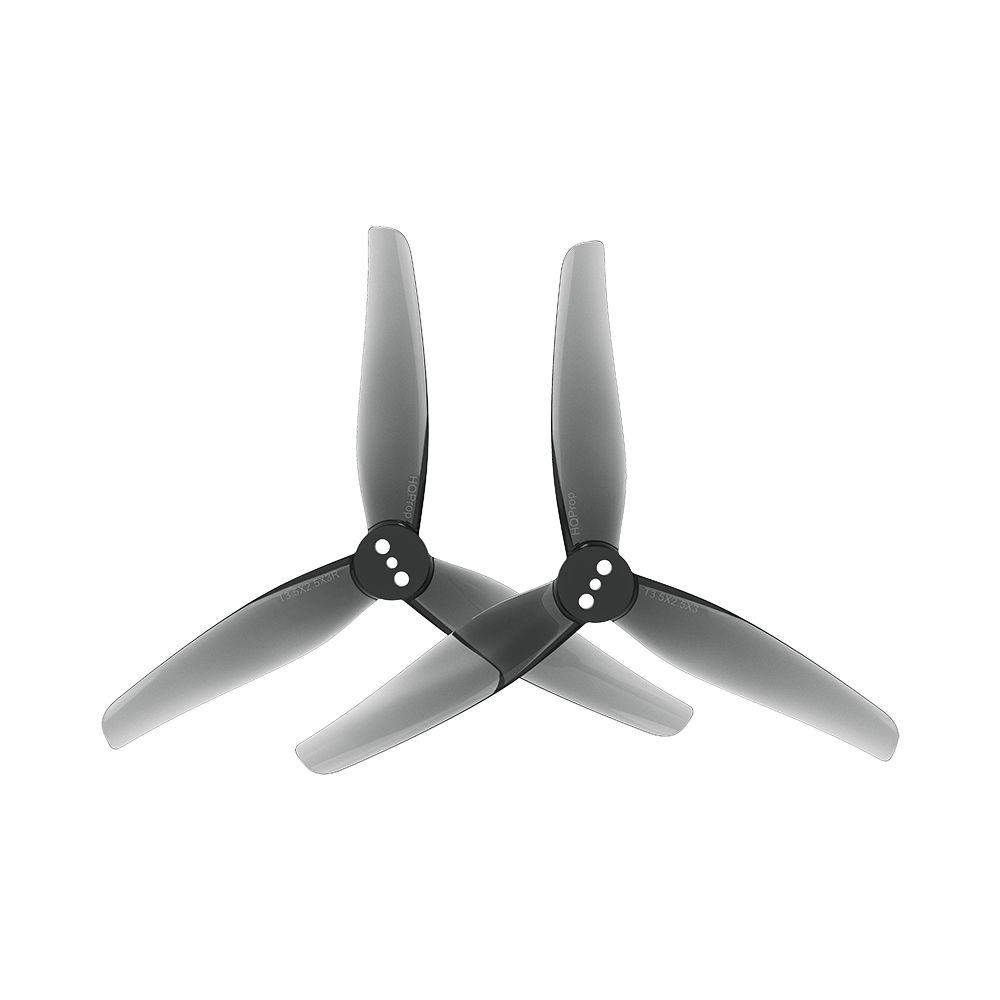

Prop: HQ 3.5*2.5*3 propellers

Weight: Approx. 216 g (Without Battery)

Dimensions (L×W×H): 135×100×40 mm (From Canopy)

Max Speed: 110 km/h (Manual Mode)

Maximum Takeoff Altitude: 3200m

Max Hover Time: Approx. 12 mins (No Load with 4S 850mAh Battery)

Approx. 18 mins (No Load with 4S 1050mAh Battery)

Max Wind Speed Resistance: Level 5

Operating Temperature Range: -10° to 40° C (14° to 104° F)

Antennas: DJI O3 Air Unit Dual-band Antenna

GNSS: GPS+SBAS+Galileo+QZSS+Glonass

Product Name: DJI O3 Air Unit

Weight: Approx. 36.4 grams（headband included）

Dimensions (L×W×H): L32.5 * W30.5 * H 14.5mm

Communication Bandwidth： Max 40 MHz

FOV (single screen): 155°

Communication Frequency: 2.400-2.4835 GHz；5.725-5.850 GHz

End-to-End Latency

With DJI FPV Goggles V2:

810p/120fps Video Transmission Quality: The latency is lower than 28 ms.

810p/60fps Video Transmission Quality: The latency is lower than 40 ms.

With DJI Goggles 2:

1080p/100fps Video Transmission Quality: The latency is as low as 30 ms.

1080p/60fps Video Transmission Quality: The latency is as low as 40 ms.

Max Video Transmission Bitrate: 50 Mbps

Max Video Transmission Range：10 km (FCC). 2 km (CE). 6 km (SRRC)

Operating Temperature Range: -10º to 40º C (14° to 104° F)

Power Input: 7.4-26.4 V

Audio Transmission: N/A

1 x iH3 O3 4S HD BNF

1 x DJI O3 Air Unit Antenna

1 x Battery pads

2 x Prop(Pair)

1 x Screw Bag

1 x Naked Gopro Cable
