BOB57 O4 Cinematic 6S HD

The iFlight BOB57 is a long-range HD drone that was designed in collaboration with pilot & videographer Ellis van Jason. The team crafted this cinematic 6-inch drone that ensures agility and flight time while combining the advantages of both 5-inch and 7-inch drones for both cinematic and freestyle flights.

Hybrid motor design optimized for that can be used with both bi-blade and tri-blade 6" propellers

High-end GPS is used to minimize the risk of failure during proximity flights

Long backbone with enough space up to fit 3000mAh 6S batteries

Solid antenna mount for less ocillations when using long antennas

Gladiator shell protects from dust and water droplets

ESCs with built-in spike absorber for more reliability

Built in BEC to directly power a GoPro camera

9-minute flight time with 3000mAh 6S Lipo

Front-mounting XT-60

Product Name: BOB57 O4 6S HD BNF

FC: BLITZ F722

ESC: BLITZ E55 55A 4-IN-1 ESC

Video Transmission: DJI O4 Air Unit Pro

Frame: 280mm wheelbase

Motor: XING2 2506 1500KV motors

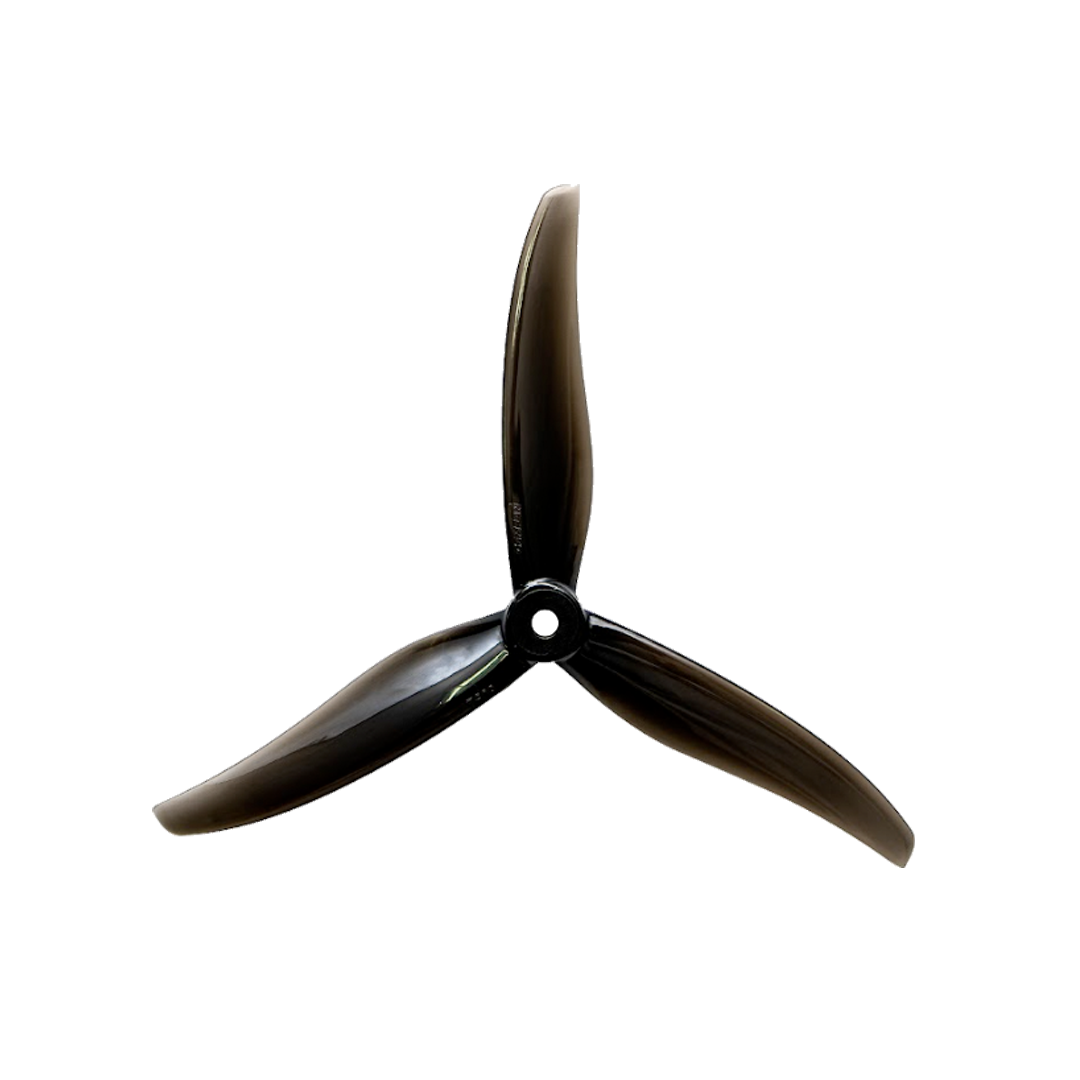

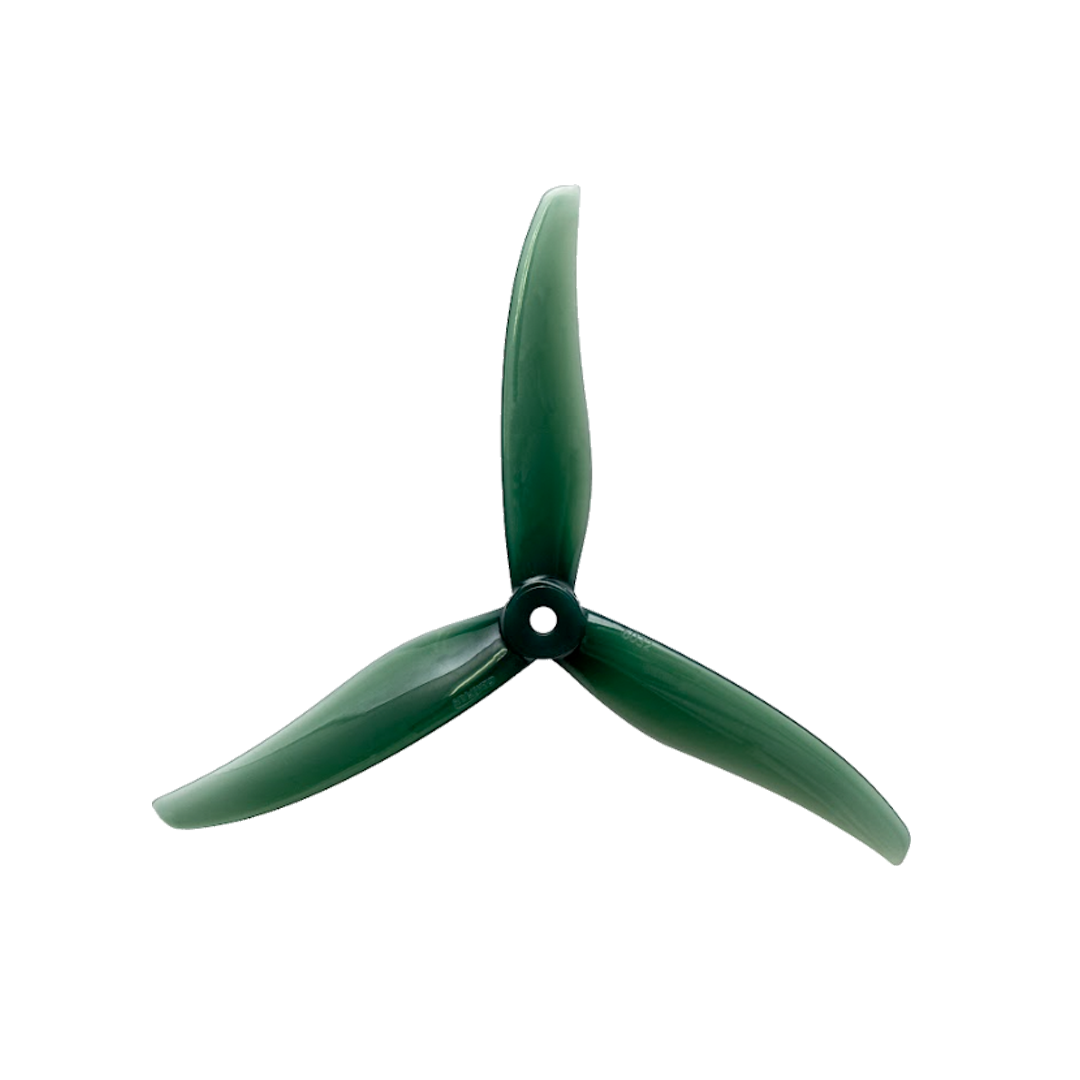

Prop: GEMFAN 6032-3 propellers

Weight: 570±5g

Takeoff Weight: Approx.795±5g (With 6S 1480mAh)

Dimensions (L×W×H): 226×166×34 mm

Max Speed: 180 km/h (Manual Mode)

Maximum Takeoff Altitude: 7000 m

Max Hover Time: Approx. 8.5 mins (With 6S 1400 no load.)

Max Wind Speed Resistance: Level 7

Operating Temperature Range: -10° to 40° C

Antennas: 2 Antenna

GNSS: GPS+SBAS+Galileo+QZSS+Glonass

Product Name: DJI O4 Air Unit Pro

Image Sensor: 1/1.3-inch

Lens: FOV: 155°

ISO: 100-25600

Video Resolution: 1080p/100fps H.265

Video Format: MP4. Max Video Bitrate: 130Mbps

Color Mode: Normal Mode/D-Log M

Stabilization: RockSteady 3.0+ ; Stabilization function off (When RockSteady is enabled. the shooting angle only supports standard.)

Live View Quality: 1080P@100fps

Operating Frequency: 5.170-5.250 GHz & 5.725-5.850 GHz

Transmitter Power (EIRP): 5.1GHz＜23dBm(CE)/5.8GHz＜33dBm(FCC)/＜14dBm(CE)/＜30dBm(SRRC))

Max Video Transmission Range: With DJI Goggles 3/DJI Goggles N3: 15 km (FCC). 8 km (CE). 8 km (SRRC)

Communication Bandwidth: Max 60 MHz

Antenna: Dual antennas

Built-in Storage: 4GB

Supported SD cards: microSD (up to 512GB)

Operating Temperature: -10° to 40° C

Weight: Air Unit (camera module included): Approx. 32 g

Dimensions: Transmission Module: 33.5×33.5×13 mm (L×W×H)

1 x BOB57 6S O4 HD BNF

2 x Antennas

1 x Battery pads

2 x Prop(Pairs)
