AOS 7 EVO V1.2 6S HD

During Dec. 20 - Dec. 24. 2024 (EST / UTC-5) . buy an AOS 7 EVO V1.2 BNF and get an extra pair of replacement arms or Gopro 8 Mount for free.

The AOS 7 EVO is a lightweight drone designed with low-vibration technology. This drone features state-of-the-art electronics and topology optimization. The AOS 7 EVO allows you to run less filtering. with less associated delay. and increase your PID gains far higher than any other frame in its weight class. Designed to match and even exceed the vibration performance of premium 5" frames this frame can deliver thrilling freestyle performance and long range cruising. the best of both worlds.

May 8. 2024 : The Albatross antenna is available in two versions. and will be shipped randomly.

DJI O3 HD Air Unit Low-Latency Digital Transmission

Topology-optimized truss design arms

2.5mm Top and Bottom Plates

Optimized Camera Protection

32x32 GoPro Mounting

Built by iFlight

Low Vibration

Product Name：AOS 7 EVO V1.2 HD BNF

FC: BLITZ F722 FC

ESC: BLITZ E55 55A 4-IN-1 ESC

Video Transmission: DJI O3 Air Unit

Frame: 293mm wheelbase

Motor: XING 2806.5 1300KVmotors

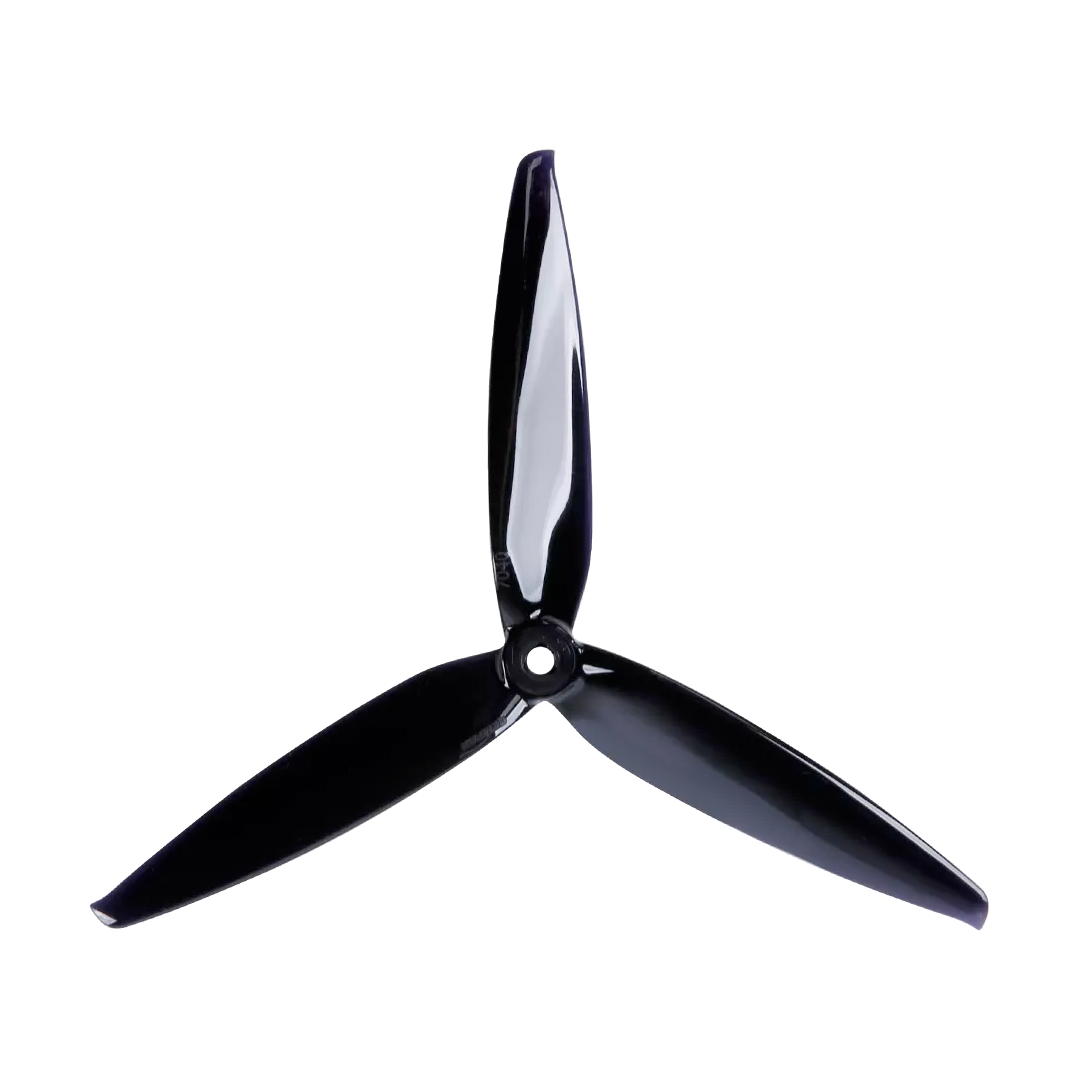

Prop: GemFan 7040 propellers

Takeoff Weight: Approx. 652g

Dimensions (L×W×H)：284×228×34.5 mm

Max Speed: 140 km/h (Manual Mode)

Maximum Takeoff Altitude: 7000 m

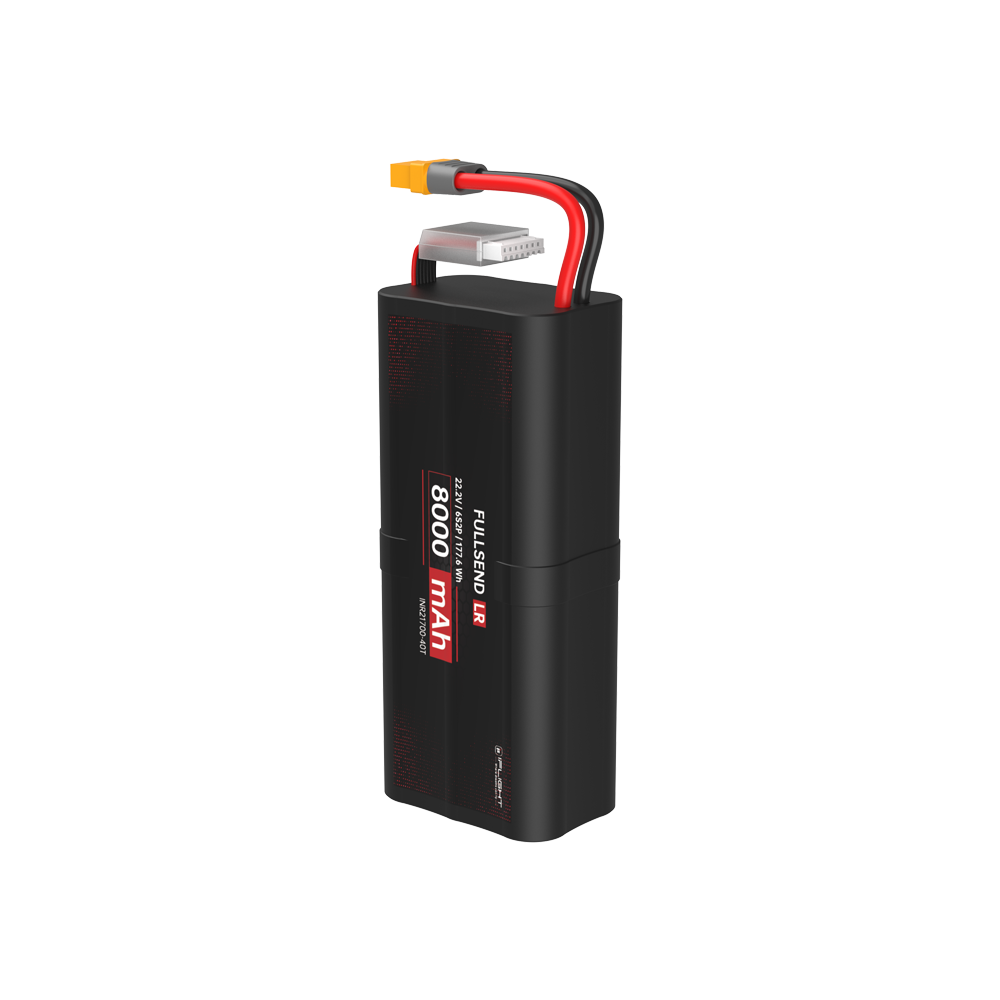

Max Hover Time: Approx. 30 mins (With 6S 2P 8000mAh battery no load)

Max Wind Speed Resistance: Level 6

Operating Temperature Range：-10° to 40° C (14° to 104° F)

Antennas: Dual Antenna

GNSS: GPS+SBAS+Galileo+QZSS+Glonass

Product Name: DJI O3 Air Unit

Communication Bandwidth: Max 40 MHz

FOV (single screen): 155°

Communication Frequency: 2.400-2.4835 GHz (RX only) / 5.725-5.850 GHz (RX and TX)

End-to-End Latency

With DJI FPV Goggles V2:

810p/120fps Video Transmission Quality: The latency is lower than 28 ms.

810p/60fps Video Transmission Quality: The latency is lower than 40 ms.

With DJI Goggles 2:

1080p/100fps Video Transmission Quality: The latency is as low as 30 ms.

1080p/60fps Video Transmission Quality: The latency is as low as 40 ms.

Max Video Transmission Bitrate: 50 Mbps

Max Video Transmission Range: 10 km (FCC). 2 km (CE). 6 km (SRRC)

Operating Temperature Range: -10º to 40º C (14° to 104° F)

Power Input: 7.4-26.4 V

Audio Transmission: N/A

1 x AOS 7 EVO V1.2 6S HD BNF

2 x Antennas

2 x Prop(Pairs)

All iFlight BNFs are tested before shipment to guarantee the highest quality.

If you still encounter a problem after receiving your shipment. please immediately contact our iFlight customer support at www.iflightrc.freshdesk.com.
