AOS 5R 6S

During Dec. 20 - Dec. 24. 2024 (EST / UTC-5) . buy an AOS 5R BNF and get an extra pair of replacement arms or Gopro 8 Mount for free.

Redefining state of the art in FPV drone racing. The AOS 5R V5 is designed with cutting-edge patent pending technology to give you an edge over the competition.

Innovation meets adrenaline with the AOS 5R V5. More advanced. more versatile. and more user friendly than any racing frame before it.

May 8. 2024 : The Albatross antenna is available in two versions. and will be shipped randomly.

Easy to build easy to maintain

The AOS 5R V5 is designed to be the easiest and most user-friendly FPV race frame to build. It's perfect for beginners and pros alike with plenty of space and no fiddly shims or interlocking carbon pieces! Simplicity is also the key to lightness. this frame comes in at ~60g with 6mm arms or just ~50g with 5mm arms.

Advanced Patent Pending Anti-Vibration Technology

Say goodbye to unwanted vibrations that can hinder performance. The AOS 5R V5 boasts the new patent pending AOS X-Cell anti-vibration mount for the flight control stack. reducing vibrations reaching your gyro. This groundbreaking feature enables you to run less filtering. higher PID gains. and reduces micro oscillations that reduce top speed and waste battery power.

Easy to switch

Standard 20mm standoff spacing fits most existing 3D printed shark fins. camera mounts for 14mm cameras and VTX antenna mounts. This makes switching your existing race build to the AOS 5R a breeze.

Reinforced arm and stack mounting

Say goodbye to stripping threads! The arm and stack mounts on the AOS 5R V5 are reinforced with steel press-nuts for easy assembly. rock solid mounting. and enhanced durability.

Customizable Arm Thickness

Tailor your drone to your needs with the choice of durable 6mm thick arms or lightweight 5mm thick arms. Whether you prioritize durability or agility. the AOS 5R V5 has you covered.

Product Name: AOS 5R Analog BNF

Geometry: True-X

FC: BLITZ Mini F7 FC

ESC: BLITZ E55R 4-in-1 ESC

Video Transmission: BLITZ Mini Force 5.8g 600mW

Frame: 201mm wheelbase

Motor: R5 2207 2050KV motors

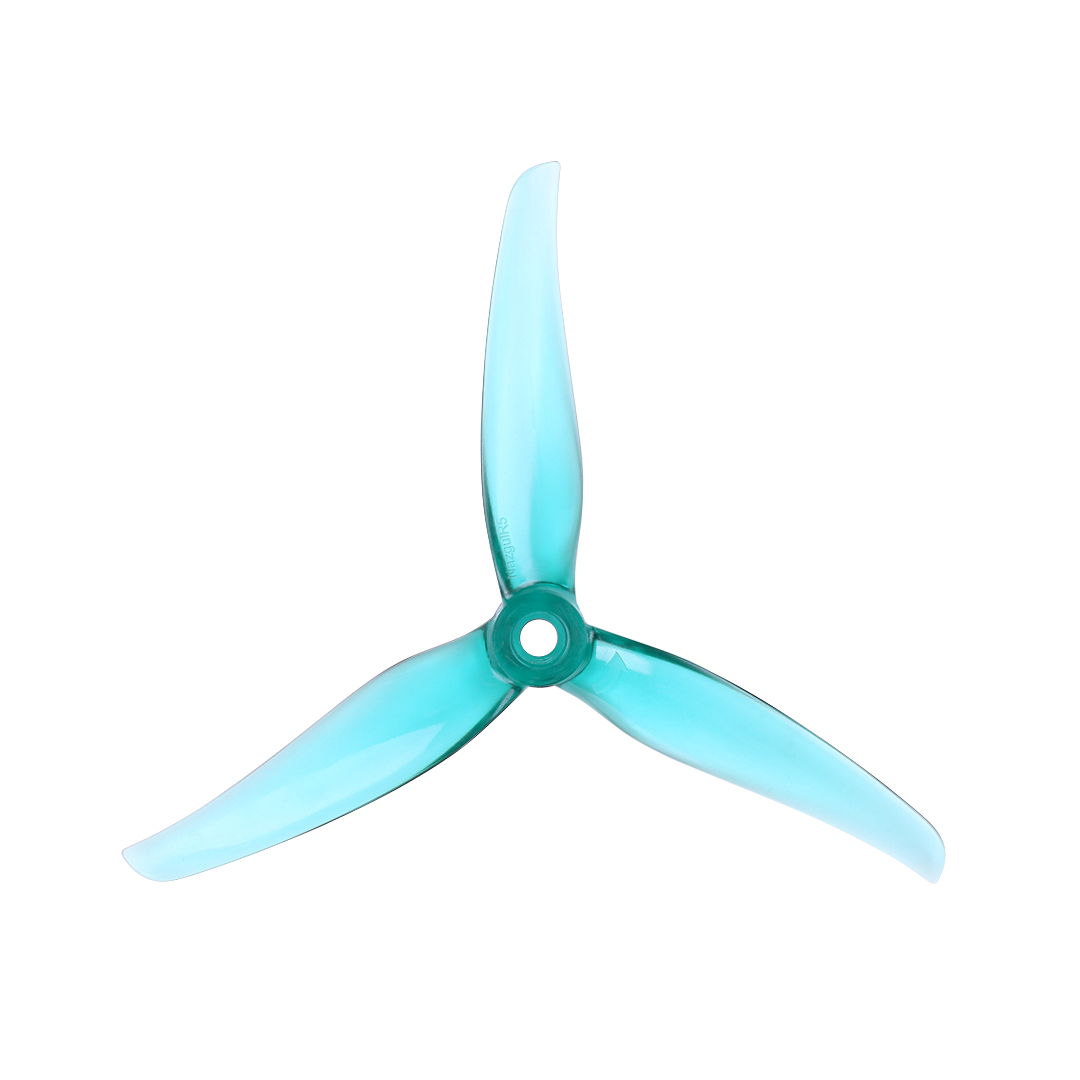

Prop: Nazgul R5 V2 propellers

Weight: 300g

Takeoff Weight: Approx. 525g (With 6S 1400mAh battery)

Dimensions (L×W×H): 142×142×38 mm

Max Speed: 205 km/h (Manual Mode)

Maximum Takeoff Altitude: 6000 m

Max Hover Time: Approx. 13 mins with 1400mAh no load

Max Flight Distance: 5 km

Max Wind Speed Resistance: Level 6

Operating Temperature Range：-10° to 40° C (14° to 104° F)

Antennas: Single Antenna

Product Name: BLITZ Mini Force 5.8G 600mW VTX

Output Power: PIT/25mW/200mW/400mW/600mW

Input Volts: 5V

Working Current: ≤pit @80mA .≤25mw@280mA .≤100mw@405mA .≤400mw@485mA .≤600mw@575mA

Transmission fre: 40CH(A-B-E-F-R)

Antenna Interface: MMCX

Mounting Hole: 25*25 Φ2mm / 20*20 Φ3mm

Weight: 4 grams (W/O antenna)

Dimensions: 29mm*29mm

1 x AOS 5R 6S Analog BNF

1 x Battery pads

2 x Prop(Pairs)

All iFlight BNFs are tested before shipment to guarantee the highest quality.

If you still encounter a problem after receiving your shipment. please immediately contact our iFlight customer support at www.iflightrc.freshdesk.com.
