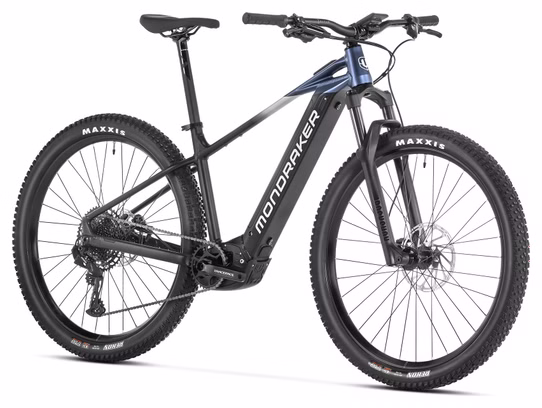

Mondraker Prime Electric Hardtail MTB Sram SX Eagle 12S 625 Wh 29'' Black Grey 2025
Quantity
-
Detail
If you want to enter the world of lightweight EABs with a powerful motor. you also have a choice in the Mondraker range. With the optimized Bosch Performance Line CX motor. it offers ideal pedaling assistance for any purpose. You can manage modes and battery range with the wireless Mini Remote. System Controller and Intuvia 100 display.
With no limits and all the possibilities. we've tailored our Forward Geometry so you can spend as many hours as you like on yourMondrakerPrime.
Comfort and lightness are its most outstanding features. so you can have fun on any terrain. With its RockShox Recon Silver RL fork with 120mm of travel. this comfort will not be incompatible with any challenge you set yourself.The + product :
- Xtralite 6061 aluminum frame with removable internal battery.
- Transmission Sram SX Eagle 1x12-speed.
- Hydraulic disc brakes Sram Level T. 200/180 mm.
- RockShox fork.
Details:
Frame Aluminum: Prime Xtralite all aluminum 6061 reinforced. Forward Geometry. removable internal battery. tapered head tube. rear axle Boost 12 x 148 mm. speed sensor integrated into the rear dropout Fork RockShox Recon Silver RL 29. 120mm. Motion Control. Solo Air. tapered steerer tube. 15x110mm Boost axle. 32mm steel plungers. 42mm offset. Adjustments: low speed compression adjustment with lockout. rebound. air preload Engine Bosch Performance Line CX (25km/h) Smart System. 85 Nm Battery Bosch Powertube 625 Wh Screen Bosch Intuvia 100 / Bosch Mini Remote Shift lever Sram Trigger SX Eagle. 1x12-speed. X-Actuation 1:1. single click Rear derailleur Sram SX Eagle. Roller Bearing Clutch type 3. Clevis Locking Technology. Long Clevis. 1 x 12 speed. X-actuation 1:1 Cassette Sram PG-1210. 11-50T. 12-speed Chain Sram SX Eagle. 12-speed. Powerlock Crankset Race Face Effect ebike. 165 mm. Sram X-Sync 2 Eagle 34T. steel. narrow width. BCD 104 Brakes Sram Level T. 2-piece caliper. Centerline 200/180 mm IS 6-hole disc. organic pads Wheelset Mavic E-CrossRide 29. 30 mm internal width. welded. PFP. tubeless compatible. 28 spokes.Mavic J-curve spoke. double reinforcement. non-contact lacing Hubs Front: Mavic . Boost 15x110 mm. IS 6 holes / Rear: Mavic. Boost 12x148mm. système Ratched ID360. IS 6 holes. HG freehub Tires Maxxis Rekon 29 x 2.6''. Tubeless Ready. dual compound. Exo protection. 60 TPI. soft bead Handlebars Onoff Sulfur 1.0. 6061 double-reinforced aluminum. curvature: 20 mm. width: 800 mm. 9° bend. 5° rise. 31.8 mm bore Grips Onoff Twin. single lock. 135 mm Stem Onoff Sulfur FG 30 mm 0º. forged aluminum alloy 6061. 31.8 mm bore Headset Onoff Saturn tapered for 1-1/8" to 1-1/2" head tube. ACB sealed bearings. top 41x30.2x7x45ºx45º. bottom 51.9x40x8x45ºx45º Saddle MDK ebike Black Seatpost OnOff Sulfur 0-R. aluminum 6061 T6. 3D forged. diameter 31.6 mm. length 400 mm Weight 22.9 kg Geometries :
Frame size XS S M L XL Wheel size (inches) 29 29 29 29 29 Seat tube (mm) 380 390 430 470 510 Top tube (mm) 600 615 645 670 700 Chainstay (mm) 455 455 455 455 455 Head tube (mm) 110 110 110 130 130 Head tube angle (°) 69 69 69 69 69 Seat tube angle (°) 73.5 73.5 73.5 73.5 73.5 Wheelbase (mm) 1138 1153 1183 1210 1240 Stack (mm) 640 640 640 658 658 Reach (mm) 410 425 455 480 505 MORE INFORMATION
See the whole range ofE-Bikesavailable.
Features
Gender Women
MenFrame material Alloy Groupset Sram SX Eagle -
